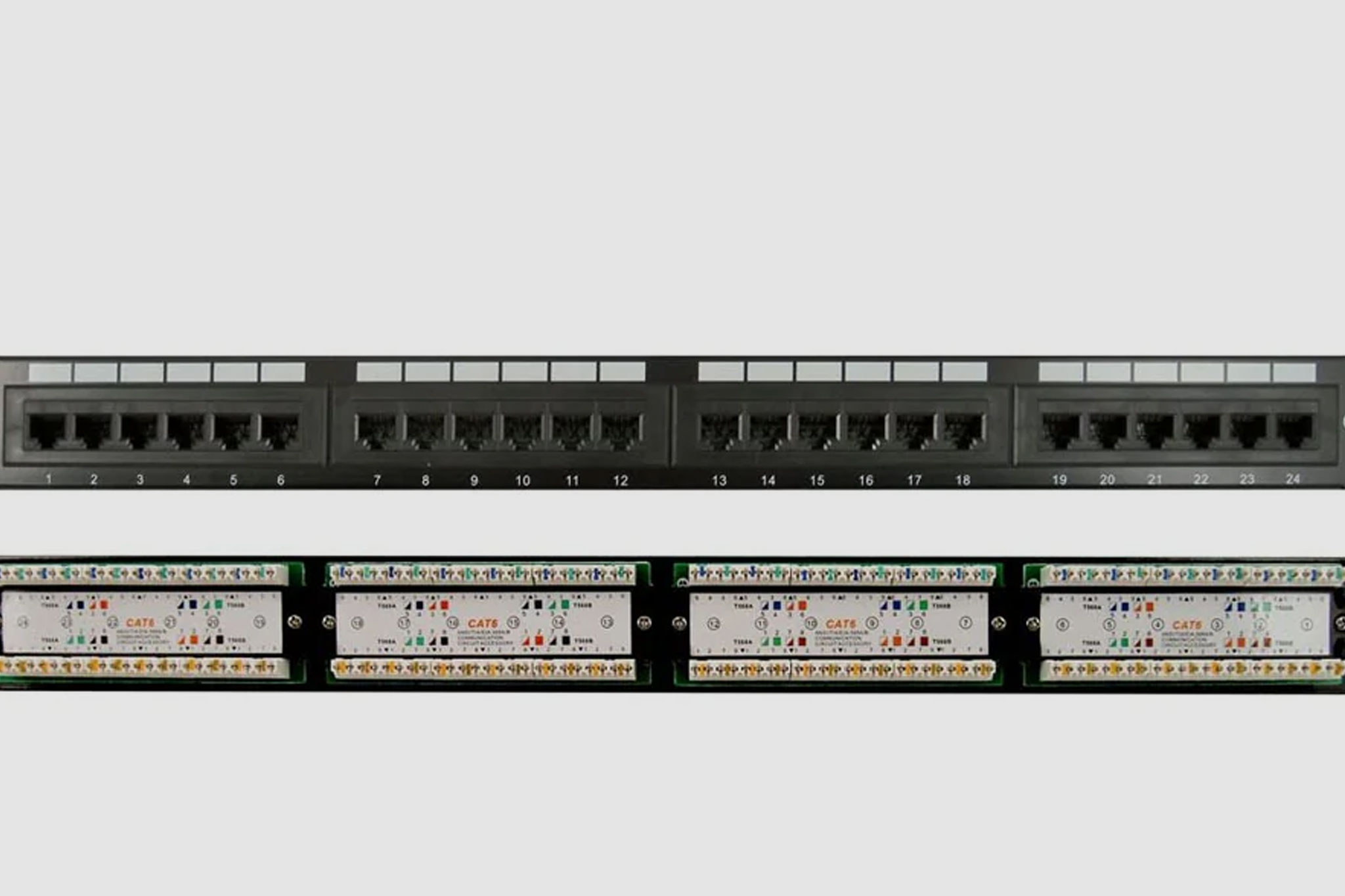

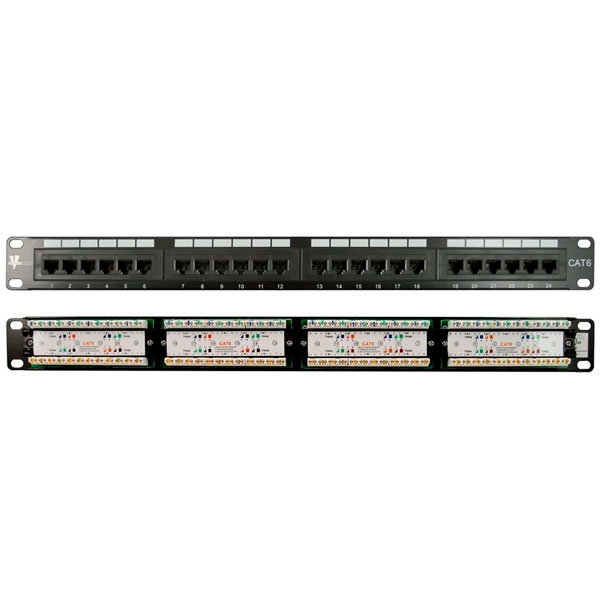

El Vertical Cable 042-377/24 Patch Panel de 24 puertos es una solución de conectividad ideal para redes modernas que requieren velocidad y estabilidad. Diseñado para cables Cat6, este panel garantiza un rendimiento óptimo en entornos empresariales. Su formato compacto de 1U lo hace perfecto para racks de tamaño estándar, mientras que su construcción robusta asegura una larga vida útil. Compatible con normativas UL, este panel ofrece confiabilidad y calidad certificada.
- Flexible design (12 & 24 ports for 1U; 48 ports for 2U; 96 ports for 4U).
- Made of sturdy, rolled-edge, anodized aluminum.
- Fully enclosed design for protection of printed circuitry during termination.
- Color-coded for T568A and T568B wiring schemes.
- Vertical Cable CAT5E &.6 panels are designed for maximum strength and are compatible with standard 110 or Krone Installation tools.
- Our panels fit and install in standard 19 inch cabinets.
- High-density 1U/2U/4U, 19, RMS (rack mount standard) design.
- Meets EIA-310-D specifications.
- Constructed from UL94-V-0 high-impact, fire-retardant ABS or PC material.
- Pair punch sequence enables a pair twist within 1/2, of termination.
- Beryllium copper contacts: 50,µ gold-plated pins over100,µ nickel layer.
- Insertion life cycle: 750 cycles (minimum) / I.D.C. 250 cycles (minimum).
- Operating temperature: -40,ºC to +68,ºC.
- 1xEIA Unit 19(W)x1.3/4(H)x1.1/4(D).
- FCC Part 68.
- UL Listed, RoHS Compliant.
